Author Topic: My diy sks mag system (video link)  (Read 5218 times)

0 Members and 1 Guest are viewing this topic.

smokinloon

  • SKS Plinker
  • *
  • Posts: 6
My diy sks mag system (video link)
« on: January 30, 2016, 03:49:47 AM »
https://m.youtube.com/watch?v=Gw9YceQE0xY


I got bored during the snow storm so I came up with this.
Not my opinion, merely a vocal observation.....

bmyers

  • SKS Newbie
  • Posts: 3
Re: My diy sks mag system (video link)
« Reply #1 on: January 30, 2016, 09:15:51 AM »
Sweet!

1mlt

  • Board Supporter
  • SKS Guru
  • *****
  • Posts: 13299
  • No place but TEXAS
    • TheSKSmagAdapter, LLC
Re: My diy sks mag system (video link)
« Reply #2 on: January 30, 2016, 09:40:39 AM »

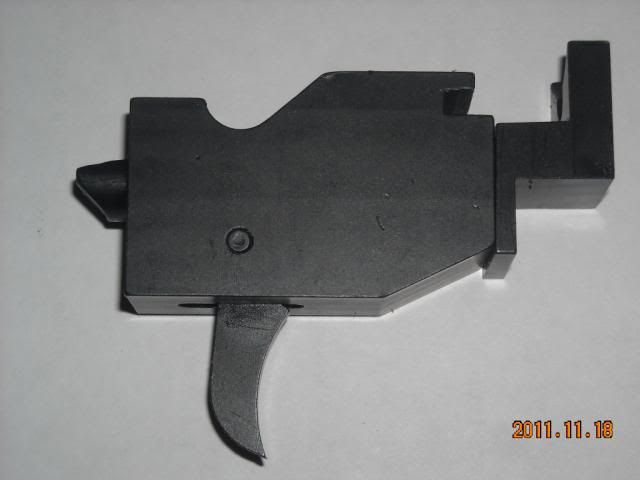

Looks pretty good. We already did that several years ago. Would like to see the rest of yours.



They work really well.

Marcus
There is but one language and that is the English language. Teddy R., 1907
Duck-bill-less mag adapters for the SKS are located at
www.thesksmagadapter.com

smokinloon

  • SKS Plinker
  • *
  • Posts: 6
Re: My diy sks mag system (video link)
« Reply #3 on: February 01, 2016, 10:42:49 AM »
I have one of your standard mag adapters in my norinco woody ;). I was just stuck at home and bored so i worked out a way to use the modified 20s in my bubba gun. its pretty simple actually, i took a piece of nylon block and cut it into a tab, heated it and bent it a little for clearance on insertion and removal, drilled a hole in the stock and through the side of the nylon tab and used a titanium hinge pin from a rc car as a pivot. The hardest part was a spring and after several trys I ended up putting a spring in a short bit of pipe and epoxying it in the area where the duckbill originaly went, it keeps good tension on the tab and also keeps it from over rotating in either direction. Oh i also drilled a hole in the end that makes contact with the mag and inserted a round head machine screw, by adding small washers and shims to the screw i can fine tune how positively it locks and the angle of the magazine in the magwell. Ill try to take some pictures close up later. Thanks
Not my opinion, merely a vocal observation.....

monaderio

  • SKS Sniper
  • *****
  • Posts: 743
Re: My diy sks mag system (video link)
« Reply #4 on: November 28, 2023, 09:48:18 PM »
I have one of your standard mag adapters in my norinco woody ;). I was just stuck at home and bored so i worked out a way to use the modified 20s in my bubba gun. its pretty simple actually, i took a piece of nylon block and cut it into a tab, heated it and bent it a little for clearance on insertion and removal, drilled a hole in the stock and through the side of the nylon tab and used a titanium hinge pin from a rc car as a pivot. The hardest part was a spring and after several trys I ended up putting a spring in a short bit of pipe and epoxying it in the area where the duckbill originaly went, it keeps good tension on the tab and also keeps it from over rotating in either direction. Oh i also drilled a hole in the end that makes contact with the mag and inserted a round head machine screw, by adding small washers and shims to the screw i can fine tune how positively it locks and the angle of the magazine in the magwell. Ill try to take some pictures close up later. Thanks

We are still waiting for the pictures.
